Interview Questions and Answers on OSPF

Open Shortest Path First (OSPF) is a popular link-state routing protocol designed for large enterprises and ISP networks. Network engineering interviews often touch on OSPF because of its strong loop prevention, support for hierarchical architecture, and quick convergence.

You can effectively prepare for any networking job discussion, interview, or exam by studying these OSPF interview questions and answers. We have included practical questions at four different levels: Basic, Intermediate, Advanced, and Scenario-Based. We have covered CCNA, CCNP, and CCIE level interview questions on OSPF.

Furthermore, if you are interested in building a career in IT networks, you can check out our IT infrastructure courses.

Basic OSPF Interview Questions and Answers

These cover foundational knowledge to demonstrate a clear understanding of how OSPF works and its essential building blocks.

1. What is the OSPF routing protocol?

OSPF is a dynamic link-state interior gateway protocol that distributes IP routing information within a single autonomous system. It uses the Shortest Path First (SPF) algorithm to calculate the best path to each destination. OSPF supports features like fast convergence, VLSM, and CIDR, making it suitable for large and complex networks.

2. What is an area in OSPF?

An area in OSPF is a logical division of routers grouped to control routing update traffic and reduce overhead. Within an area, routers share the same link-state information, which keeps the network stable and more manageable. Proper area design improves performance and scalability.

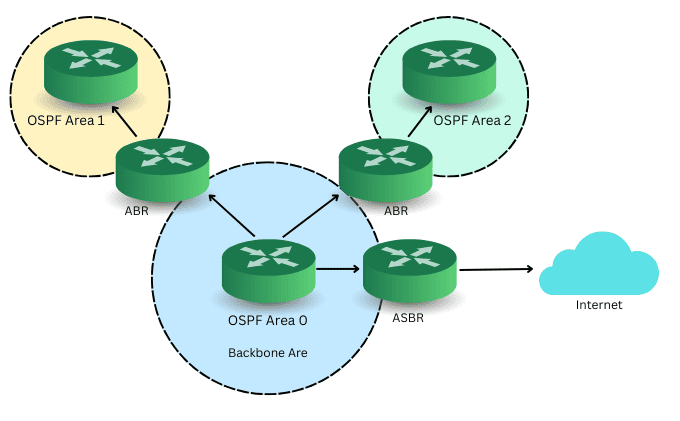

3. What is the Backbone Area?

The Backbone Area, also called Area 0, is the central OSPF area to which all other areas must connect either directly or via a virtual link. It acts as the core for inter-area routing and prevents routing loops across the OSPF domain. All inter-area traffic must transit the backbone to maintain a hierarchical topology.

CCNA Certification TrainingJoin online training course for CCNA exam preparation.Explore course

4. What is an Autonomous System Boundary Router (ASBR)?

An ASBR is a router that connects an OSPF network to an external network, such as another autonomous system or a different routing protocol. It redistributes external routing information into the OSPF domain using Type 5 LSAs. ASBRs play a key role in providing reachability to networks outside the local OSPF domain.

5. What is a Designated Router (DR)?

A Designated Router is elected on broadcast and non-broadcast multi-access networks to reduce the number of OSPF neighbor adjacencies. It collects and distributes LSAs for all routers on that segment, minimizing OSPF overhead. If the DR fails, the Backup Designated Router (BDR) takes over to ensure stability.

6. How are OSPF DR and BDR elected?

Routers exchange Hello packets containing their priority and Router ID. The router with the highest priority becomes the DR, and the next highest becomes the BDR. If the priorities match, the highest Router ID breaks the tie, ensuring a deterministic election.

7. What are the five types of OSPF packets?

OSPF uses five packet types. They are described in the table:

8. What are the OSPF network types?

OSPF supports Broadcast (Ethernet), Non-Broadcast Multi-Access (NBMA, like Frame Relay), Point-to-Point (direct links like PPP), and Point-to-Multipoint networks. Each type affects how OSPF discovers neighbors and whether DR/BDR elections occur. Correct configuration ensures proper neighbor relationships and optimal routing.

9. What is an OSPF Router ID?

The Router ID is a unique identifier for each OSPF router, typically an IP address in dotted decimal format. By default, it is chosen as the highest loopback IP or, if no loopback exists, the highest IP on an active interface. It must be unique within the OSPF domain and does not change unless manually configured, and the OSPF process is restarted.

10. What is the Hello and Dead Interval in OSPF?

The Hello Interval is the frequency at which OSPF Hello packets are sent to discover and monitor neighbor routers. The Dead Interval defines how long a router waits without receiving Hello packets before declaring a neighbor down. Both timers must match on neighboring routers for stable adjacency.

Intermediate OSPF Interview Questions and Answers

This level checks your ability to configure, optimize, and understand OSPF in more depth.

1. How can you change the Router ID in OSPF?

You can manually set the Router ID using the router-id command under OSPF configuration. If not manually specified, OSPF picks the highest loopback IP or the highest active interface IP. Changing the Router ID requires restarting the OSPF process for it to take effect.

2. What are the important features of OSPF?

OSPF is a classless protocol supporting VLSM and CIDR, which allows efficient use of IP addresses. It uses cost as a metric based on bandwidth, supports multiple areas for better scalability, and offers fast convergence. Security is enhanced through support for plain-text or MD5 authentication.

3. How does OSPF work internally?

Each router forms neighbor relationships using Hello packets, exchanges link-state information to build a complete map of the network (LSDB), and then independently runs the SPF algorithm to compute the shortest paths. If network changes occur, updated LSAs are flooded to neighbors, and the SPF tree recalculates optimal paths. This process ensures quick adaptation and loop-free routing.

4. What are the different OSPF router types?

There are four main router roles in OSPF: Internal Router (all interfaces in the same area), Backbone Router (at least one interface in Area 0), Area Border Router (ABR, connects different areas to Area 0), and Autonomous System Boundary Router (ASBR, connects OSPF to external routing domains). Each role has specific responsibilities in route propagation and LSDB management.

5. Why should you divide a network into OSPF areas?

Dividing a network into areas reduces the size of each router's LSDB, minimizing memory and CPU use. It limits LSA flooding to within each area, containing the impact of network changes. This hierarchical design increases stability and scalability in large environments.

6. How can you force neighbors to reach full adjacency?

Ensure that both routers share the same Hello and Dead intervals, MTU sizes, and authentication settings. Verify that they belong to the same area and network type. Troubleshoot interface errors or mismatched configurations that can prevent the adjacency from progressing to Full state.

7. What are common OSPF neighbor states?

The main OSPF neighbor states are Down, Init, Two-Way, ExStart, Exchange, Loading, and Full. Two-Way means routers see each other as neighbors; Full means they have synchronized LSDBs. Understanding these states helps pinpoint where adjacency formation might be stuck.

8. What are LSA, LSU, and LSR?

LSA (Link-State Advertisement) is the fundamental unit describing network topology information. LSU (Link-State Update) is the packet used to deliver LSAs to neighbors. LSR (Link-State Request) is used to request specific LSAs from a neighbor when the local LSDB is incomplete.

9. How does OSPF use multicast?

OSPF uses multicast addresses 224.0.0.5 to communicate with all OSPF routers and 224.0.0.6 to communicate specifically with DR and BDR. Non-DR routers send updates to the DR/BDR using 224.0.0.6. This efficient design reduces unnecessary flooding on broadcast networks.

10. What are the benefits of OSPF route summarization?

Route summarization reduces the size of routing tables, limits LSA flooding, and isolates network changes to within summarized areas. It enhances stability and speeds up convergence by minimizing recalculations during link failures. Summarization is done at ABRs for inter-area routes and at ASBRs for external routes.

Advanced OSPF Interview Questions and Answers

These questions test in-depth protocol behavior, tuning, and troubleshooting expertise.

1. How do you change OSPF reference bandwidth?

The reference bandwidth sets the base cost for calculating link costs, which is important for high-speed interfaces. Use auto-cost reference-bandwidth in router OSPF configuration mode to adjust it to match faster links like gigabit or 10-gigabit. Consistency across routers is critical to ensure accurate cost calculations network-wide.

2. What is the IP OSPF transmit-delay used for?

Transmit-delay adds extra age to an LSA before sending it out on an interface to compensate for serialization delay on slower links. This ensures that the LSA's age remains accurate across routers, preventing premature expiry. It is especially useful for slow WAN or serial links.

3. How many OSPF timers are there, and what are they?

OSPF uses four main timers: Hello Interval (Hello packet frequency), Dead Interval (time before a neighbor is declared down), Retransmit Interval (how often LSAs are retransmitted if unacknowledged), and Transmit Delay (serialization compensation). Tuning these helps maintain stable adjacencies and fast convergence.

4. Explain E1 vs. E2 external routes.

E1 external routes add the cost of the external route plus the internal OSPF cost to reach the ASBR. E2 external routes use only the external cost, regardless of the internal path. E1 routes are preferred when you need an accurate end-to-end cost for routing decisions.

5. Can OSPF filter routes with distribute-list in/out?

OSPF does not filter link-state information directly; distribute-list in/out does not work as in RIP or EIGRP. Instead, use route-maps during redistribution to control which external routes are injected. Summarization and prefix-lists at ABRs can also limit routing table size.

6. Why is OSPF loop-free by design?

All routers share the same synchronized LSDB and independently run the SPF algorithm to compute optimal, non-looping paths. OSPF's hierarchical area structure and controlled inter-area routing also eliminate routing loops. This ensures stability even in large, dynamic networks.

7. How does OSPF handle authentication?

OSPF supports plain-text and MD5 authentication to verify that updates come from trusted routers. Authentication is configured on each interface or globally for an area. This prevents rogue devices from injecting false routing information.

8. How do you advertise a default route into OSPF?

Use the default-information originate command on the router with an existing default route to advertise it into OSPF. If no default route exists in the routing table, use always to force the advertisement. This enables all OSPF routers to route unknown traffic to that router.

9. Can you run OSPF over GRE tunnels?

Yes, OSPF runs well over GRE tunnels, which appear as logical point-to-point links. This is common when connecting remote OSPF areas over the Internet or MPLS. GRE encapsulates OSPF packets, allowing adjacency and LSDB synchronization across non-native IP paths.

10. What multicast addresses does OSPF use for DR/BDR?

On broadcast or NBMA networks, non-DR routers send updates to the multicast address 224.0.0.6 (all DRs/BDRs). DRs use 224.0.0.5 (all OSPF routers) to flood LSAs. This targeted communication optimizes network traffic and reduces unnecessary flooding.

Scenario-Based OSPF Interview Questions and Answers

These questions check your ability to apply OSPF concepts in real-world troubleshooting and network design. They are especially valuable for hands-on roles in network operations and architecture.

1. A router in your OSPF network is advertising routes incorrectly. How would you troubleshoot this?

First, check the router’s configuration to ensure the correct networks are included in the OSPF process using the network command. Review route redistribution settings to confirm that only intended routes are being injected, and verify any route-maps or prefix-lists used for filtering. Finally, inspect the LSDB using show ip ospf database to identify unexpected LSAs and trace their source.

2. Two routers on the same subnet are not forming an OSPF adjacency. What steps would you take?

Verify that both routers are in the same OSPF area and that the Hello and Dead intervals match. Ensure that OSPF authentication settings and passwords are identical if authentication is enabled. Also, check for mismatched MTU values and confirm no ACLs or firewall rules are blocking OSPF packets.

3. Your network has started seeing unexpected Type 5 LSAs. What could cause this, and how would you handle it?

Type 5 LSAs indicate external routes being injected into OSPF by an ASBR. Verify whether a router was newly configured to redistribute external routes, like static, RIP, or BGP routes. If external routing was not intended, remove the redistribution configuration or adjust route-maps to filter out unwanted prefixes.

4. You need to configure OSPF over a Frame Relay NBMA network. What special considerations should you keep in mind?

NBMA networks do not support broadcast, so OSPF cannot automatically discover neighbors. Manually define OSPF neighbors using the neighbor command, and ensure the correct network type (NBMA or Point-to-Multipoint) is set. Consider using point-to-point subinterfaces to simplify DR/BDR elections and neighbor management.

5. How would you advertise a default route into an OSPF area so that all routers receive it?

On the router that has the actual default route (like a connection to the internet), configure default-information originate. This tells the router to generate and advertise a default route (0.0.0.0/0) into the OSPF domain. Ensure that a valid default route exists in the routing table, or use the always keyword to force its advertisement.

6. OSPF adjacencies between two routers keep bouncing between FULL and EXSTART states. What could be the problem?

A common cause for this is a mismatch in the MTU configured on both interfaces, which prevents proper Database Description (DBD) exchange. Use the show ip ospf interface command to compare MTU sizes and adjust them to match. If necessary, configure IP OSPF MTU-ignore on both sides to bypass the MTU check, though aligning MTUs is the better practice.

7. A specific OSPF area is isolated and has lost its direct connection to Area 0. How do you restore connectivity?

Create a Virtual Link through a common transit area that connects the isolated ABR back to Area 0. Configure the Virtual Link on both ABRs using the area virtual-link command. Ensure the transit area is not a stub area, as Virtual Links cannot pass through stubs.

8. Some routers in a branch office have very limited resources. How would you design their OSPF area to be efficient?

Configure the branch office as a Stub or Totally Stubby Area. A Stub Area blocks external LSAs (Type 5), while a Totally Stubby Area also blocks inter-area LSAs (Type 3), allowing only a default route to reach the core network. This minimizes routing table size and processing load, which is ideal for small routers.

9. A broadcast network with multiple routers experiences high OSPF overhead. What would you do?

Ensure that a DR and BDR are elected to minimize the number of adjacencies. Verify that all routers have appropriate priority settings for DR/BDR elections; lower priority can prevent unnecessary DR candidacy for routers that should not take this role. Use the show ip ospf neighbor command to check the current DR/BDR status and adjust if needed.

10. How do DR and BDR elections help scalability in large multi-access segments?

Without a DR and BDR, every router would need a full adjacency with every other router on the same segment, creating an excessive number of neighbor relationships and redundant LSA exchanges. By electing a DR, all routers exchange LSAs only with the DR and BDR, which then distribute updates to the rest. This drastically reduces overhead, improves efficiency, and ensures a stable topology.

Tips for OSPF Interview Questions and Answers

The following are a few tips for your interview or exam preparation:

1. Interviewers appreciate candidates who not only know OSPF theory but also how it’s applied in real networks. Think about how OSPF behaves in multi-area environments or during network failures.

2. Beyond describing the protocol, explain the business or operational benefits, such as fast convergence, scalability, and support for complex topologies.

3. Real networks often face issues designing OSPF areas properly. Talk about trade-offs between flat vs. hierarchical designs and how you’d prevent routing loops or excessive LSAs.

4. If you’ve worked with OSPF, briefly share a story about a tricky issue you resolved or a configuration decision you made. Real examples show depth of knowledge.

5. Instead of just listing commands, explain your thought process: how you identify if a neighbor's adjacency failed, how you check database synchronization, or what causes route flapping.

6. Many candidates overlook the importance of timers like Hello and Dead intervals. Explain how tuning these can improve network performance or resolve neighbor issues.

Conclusion

Whether working in complicated multi-area systems, big ISP backbones, or enterprise LANs, network engineers must understand OSPF. Basic, Intermediate, Advanced, and Scenario-Based OSPF interview questions and answers have all been covered in this extensive resource to help you show off your theoretical understanding and real-world troubleshooting abilities.

You will be well-equipped to handle OSPF subjects with assurance in job interviews and real-world network operations by practicing these questions and comprehending the underlying ideas. This will guarantee that you can design, build, and manage reliable and scalable IP networks.
