What is VRF? Full-Form, Uses and Working Explained

In today's world, managing networks is very important. As businesses grow, they need better ways to handle their networks. One solution that helps with this is called VRF.

In this article will learn the VRF meaning in networking, how it works, and why it's useful. Whether you're a young tech enthusiast or just curious about networking, this guide will help you understand how VRF can make networks better and safer.

Further, if you want to build a career in IT networking, you can check out our networking courses, which provide online training for job-ready skills.

What is VRF?

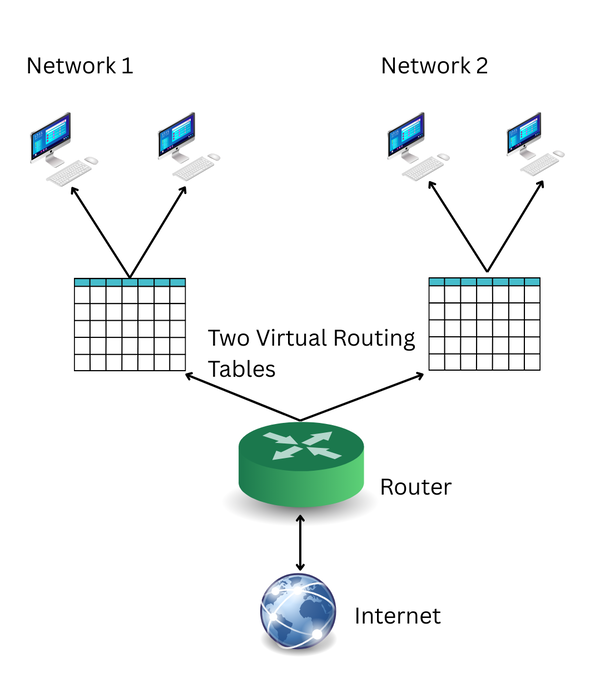

VRF is a technology that enables the creation of multiple virtual routing tables on a single physical router. By isolating these routing tables, VRF allows for greater control and security by ensuring that traffic from different customers or departments doesn't interfere with each other.

VRF full form is Virtual Routing and Forwarding

Each VRF instance behaves as a separate logical router, maintaining its own routing and forwarding decisions.

This technology is primarily used by service providers to offer virtualized services to different customers, such as MPLS VPNs (Multiprotocol Label Switching Virtual Private Networks), where the service provider offers secure, isolated network connections for each customer.

CCNP Enterprise CourseJoin the CCNP Enterprise training class for in-depth knowledge of VRF.Explore course

Why Do We Need VRF?

VRF is very important in networking. Some uses of VRF are:

1. Traffic Segmentation: VRF allows service providers to maintain multiple isolated customer networks on a single router, ensuring that the traffic from one customer does not interfere with another.

2. Improving Security: By creating virtual routing tables, VRF isolates traffic and ensures that one network cannot access the data or resources of another, making it an ideal solution for multi-tenant environments.

3. Reducing Costs: Instead of using multiple physical routers for different customers or departments, VRF allows for the consolidation of resources, reducing hardware costs and simplifying management.

4. MPLS VPNs: In MPLS networks, VRF is essential for defining different paths for customer data, ensuring each customer’s traffic is separated and securely routed across the shared infrastructure.

5. Simplify Network Management: VRF simplifies the management of large-scale networks by creating logical boundaries within a physical router, which can help in managing IP addressing and routing more efficiently.

What is VRF Route Leaking?

VRF Route Leaking is the process of allowing routes from one VRF to be shared or "leaked" into another VRF. By default, the routing tables in different VRF instances are completely isolated from each other, but sometimes there is a need to enable communication between two different VRFs.

For example, a service provider may have different customers with their own VRFs, but there may be a need for certain customers to communicate with each other. Route leaking enables the importation of routes from one VRF into another, making it possible for the two VRFs to exchange information and forward traffic between them.

Route leaking can be achieved in various ways, including:

Static Routing: A static route is manually added to allow routes to be shared between VRFs.

Routing Protocols: Dynamic routing protocols like BGP (Border Gateway Protocol) can be used to exchange routing information between VRFs.

While route leaking provides flexibility, it should be used with caution to ensure that traffic does not accidentally flow between networks that should remain isolated. Proper planning and security policies are essential when implementing VRF route leaking.

Read About Other Routing Protocols in Computer Networks

Benefits of VRF in Networking

● Improves network efficiency, security, and scalability by allowing distinct routing paths for different departments, customers, or services on the same physical infrastructure.

● Isolates traffic within the same physical infrastructure, ensuring different networks or customers do not interfere with each other.

● Allows service providers and large enterprises to use a single router for multiple networks, reducing the need for additional hardware and simplifying management.

● Offers flexibility in designing complex networks that can meet the needs of diverse users or departments by creating multiple virtual routers.

● Enables easy network scaling by adding more isolated routing instances without significant changes to the underlying infrastructure.

Difference Between VLAN and VRF

VLAN (Virtual Local Area Network) and VRF (Virtual Routing and Forwarding) are both technologies used to segment and manage network traffic, but they serve different purposes.

VLAN is a Layer 2 technology used to segment network devices within the same physical network, creating isolated broadcast domains. VLANs operate at the data link layer (Layer 2) and are typically used to separate network traffic within the same switch or across switches.

VRF, on the other hand, is a Layer 3 technology used to create isolated routing tables within a single router. VRF allows multiple virtual routers to exist on a single physical router, ensuring that each VRF has its routing table, which prevents routing conflicts between networks.

Read More about OSI Layers

How to Configure VRF

Configuring VRF (Virtual Routing and Forwarding) on a router involves several steps to ensure the effective creation of multiple isolated virtual routers within a single physical router.

Below is a detailed explanation of how to configure VRF, starting from defining VRF instances to verifying the configuration:

Step 1: Define the VRF Instance

The first step in configuring VRF is to create a VRF instance. A VRF instance is essentially a virtual router that operates independently of others within the same physical router. Each VRF instance has its routing table, which is isolated from others.

To define a VRF instance, you use the following command:

Replace with the name you want to assign to your VRF instance. The name should be unique to avoid any conflicts.

Example: " ip vrf Customer_A "

This command will create a VRF instance named Customer_A. You can create multiple VRF instances for different customers or departments by repeating this process.

Step 2: Assign Interfaces to VRF

After creating the VRF instance, the next step is to assign network interfaces to the VRF. This ensures that the traffic passing through those interfaces is handled by the appropriate VRF instance.

To assign an interface to a VRF, you use the following command in interface configuration mode:

Replace with the actual name of the interface (e.g., GigabitEthernet0/1).

Replace with the name of the VRF instance you created in the previous step.

Example:

interface GigabitEthernet0/1

ip vrf forwarding Customer_A

This command associates the GigabitEthernet0/1 interface with the Customer_A VRF instance. Now, all traffic entering or leaving this interface will be routed according to the Customer_A VRF's routing table.

Step 3: Assign an IP Address to the Interface

Once the interface is associated with the VRF, you need to assign an IP address to the interface. The IP address configuration is similar to that in regular routing interfaces, but it will only be valid for the VRF instance.

Use the following command to assign an IP address:

Example:

ip address 192.168.1.1 255.255.255.0

This assigns the IP address 192.168.1.1 with a subnet mask of 255.255.255.0 to the interface. The IP address will now be used by the VRF instance to forward traffic for the network associated with that VRF.

Step 4: Configure Routing Protocols for the VRF

Once the VRF instance and interfaces are configured, you need to configure routing protocols to allow the exchange of routing information within the VRF. This ensures that the virtual router can route traffic to and from other devices within the same VRF.

Common routing protocols used within VRF instances include OSPF, BGP, and EIGRP. Here's how to configure each protocol within a VRF instance:

1. OSPF for VRF:

To enable OSPF within a VRF instance, use the following commands:

Example:

router ospf 1 vrf Customer_A

network 192.168.1.0 0.0.0.255 area 0

This command enables OSPF for the Customer_A VRF instance and configures the OSPF network within that VRF.

2. BGP for VRF:

To configure BGP in a VRF instance, use these commands:

Example:

router bgp 65000

address-family ipv4 vrf Customer_A

network 192.168.1.0 mask 255.255.255.0

This command enables BGP within the Customer_A VRF instance and advertises the 192.168.1.0/24 network.

3. EIGRP for VRF:

For EIGRP, use the following command to enable it within the VRF:

Example:

router eigrp 100 vrf Customer_A

network 192.168.1.0 0.0.0.255

This command configures EIGRP within the Customer_A VRF instance and includes the specified network.

Step 5: Configure Route Leaking (Optional)

In some cases, there may be a need to allow routing between different VRF instances. This process is known as route leaking. By default, the routing tables of different VRFs are isolated, but route leaking enables the exchange of routes between them.

Example of static route leaking:

ip route vrf Customer_A 192.168.2.0 255.255.255.0 10.1.1.1

This command leaks a route from the Customer_A VRF to another VRF instance, allowing communication between them.

Step 6: Verify VRF Configuration

Once you've configured the VRF instances and routing protocols, it's essential to verify the configuration to ensure everything is working correctly.

Here are some commands you can use to verify the configuration:

Verify VRF instance:

Verify the routing table for a specific VRF:

Verify interfaces assigned to a VRF:

Check the routing protocols within the VRF:

Step 7: Troubleshooting VRF Configuration

If you're experiencing issues with your VRF configuration, here are some common troubleshooting steps:

● Check Interface Assignments: Make sure that the interfaces are correctly assigned to the right VRF.

● Verify Routing Protocols: Ensure that the routing protocols are correctly configured and that they are running within the correct VRF.

● Check IP Addresses and Subnets: Verify that the IP addressing scheme for each VRF instance is correctly configured and does not overlap.

● Route Leaking Configuration: If communication between VRFs is needed, ensure that route leaking is correctly configured.

Conclusion

VRF or Virtual Routing and Forwarding is an essential technology that allows for the creation of isolated network environments within a single physical router. It helps improve network security, segmentation, and efficiency by enabling independent routing decisions for different networks.

VRF is widely used in service provider environments and large enterprise networks, especially for creating MPLS VPNs.

In addition, VRF route leaking provides the flexibility to share routes between different VRF instances when necessary, although this must be done cautiously to avoid security risks.

Overall, VRF offers significant benefits, including simplified network management, improved security, and cost efficiency, making it a valuable tool in modern networking.
