Frame Relay is a network communication protocol used in computer networks to facilitate efficient data transmission between multiple devices. It plays a vital role in wide area networks (WANs) by providing a cost-effective solution for connecting remote LANs and supporting bursty traffic over shared physical links.

This article covers what Frame Relay is, how it works, its architecture, the layers it operates on, its key benefits, limitations, and many more important topics.

What is Frame Relay?

Frame Relay is a data link layer protocol used in WANs to transmit data between geographically dispersed LANs. It offers a more scalable and cost-effective alternative to point-to-point connections by using a shared infrastructure and virtual circuits to route packets.

Frame Relay breaks data into variable-sized frames and forwards them over virtual circuits established between endpoints. It supports dynamic bandwidth allocation and multiple connections over a single physical link.

However, unlike some older protocols like X.25, Frame Relay does not provide error correction or flow control, relying instead on higher-layer protocols to manage reliability.

Features of Frame Relay

Frame Relay uses virtual circuits to connect multiple LANs over a single physical link efficiently.

1. It supports both permanent and switched virtual circuits for flexible and scalable network connections.

2. Frame Relay is cost-effective for transmitting bursty data traffic over wide area networks.

3. It uses DLCI numbers to identify virtual circuits and route data frames to the correct destination.

4. Frame Relay reduces overhead by using a simplified protocol compared to older technologies like X.25.

5. It allows for dynamic bandwidth allocation based on network traffic and service agreements.

Learning More WAN SolutionsLearn Cisco SD-WAN to simplify WAN management.SD-WAN Online Training

The Key Components of a Frame Relay Network

The architecture of a Frame Relay network consists of several critical components that manage data transmission, switching, and routing.

1. Data Terminal Equipment (DTE)

DTE refers to end-user devices like routers or computers that send and receive data. These devices are located at the customer premises and connect to the Frame Relay network via the service provider's equipment.

2. Data Circuit-Terminating Equipment (DCE)

DCE devices, such as Frame Relay switches, are managed by the service provider. They facilitate data transmission over the network and handle tasks like signal conversion and timing.

3. Access Link

The access link is the physical line connecting a customer’s DTE to the provider’s DCE. It is typically a leased serial line and serves as the entry point into the Frame Relay network.

4. Frame Relay Switch

A Frame Relay switch is a core network device that uses virtual circuit identifiers (DLCIs) to forward data. It routes frames between different locations and manages the overall traffic flow.

5. Virtual Circuits (VCs)

Virtual circuits are logical connections established between devices. They can be permanent (PVC) or temporary (SVC), allowing for flexible data routing without dedicated physical paths.

6. Data Link Connection Identifier (DLCI)

DLCIs are unique numbers assigned to each virtual circuit. They help identify the destination of a frame and are crucial for routing within the Frame Relay network.

7. Local Management Interface (LMI)

LMI is a signaling protocol used between DTE and DCE to manage and monitor the status of virtual circuits. It ensures connectivity and informs devices when circuits are active or inactive.

How Does Frame Relay Work?

Frame Relay is a way to send data between different locations using a shared network. It starts with devices called Data Terminal Equipment (DTE), like routers or computers, which are used by customers to send and receive data. These devices connect to the network through Data Circuit-Terminating Equipment (DCE), which is managed by the service provider.

The connection between the customer’s device and the provider’s equipment is called an access link. This is usually a leased line that acts as the entry point into the Frame Relay network.

Inside the network, Frame Relay switches move the data from one place to another. These switches use special labels called Data Link Connection Identifiers (DLCIs) to know where each piece of data should go.

Instead of using a direct physical path, Frame Relay creates virtual circuits. These are logical paths that guide the data across the network. Some circuits are always available (called permanent virtual circuits), while others are set up only when needed (called switched virtual circuits).

To keep everything running smoothly, a system called Local Management Interface (LMI) helps monitor the network. It checks if the virtual circuits are working and lets devices know when a connection is active or not.

Why Network Management Matters in Frame Relay?

Frame Relay networks are designed to handle data efficiently across shared paths. Since multiple users may send data at the same time, the network needs smart ways to manage traffic. Without proper control, too much data can slow down the network or cause delays. This is where network management techniques like congestion control come into play.

Congestion Control Mechanisms

Frame Relay uses special indicators in each data frame to manage network congestion. These help the network handle heavy traffic and keep data flowing smoothly.

1. Forward Explicit Congestion Notification (FECN)

This bit is set by a switch when it detects congestion in the network. It tells the receiving device that the data faced delays due to traffic. This helps the receiver understand that the network is busy.

2. Backward Explicit Congestion Notification (BECN)

This bit is sent back to the sender to let it know that congestion occurred along the path. The sender can then slow down the rate of data transmission to reduce pressure on the network.

3. Discard Eligibility (DE)

This bit marks certain frames as low priority. If the network becomes overloaded, these marked frames are the first to be dropped. This helps protect more important data from being lost.

You can join our online networking courses to learn other networking skills and specialize in WAN solutions. Contact our learner advisors to learn more about our IT training facilities.

Contact learner advisor

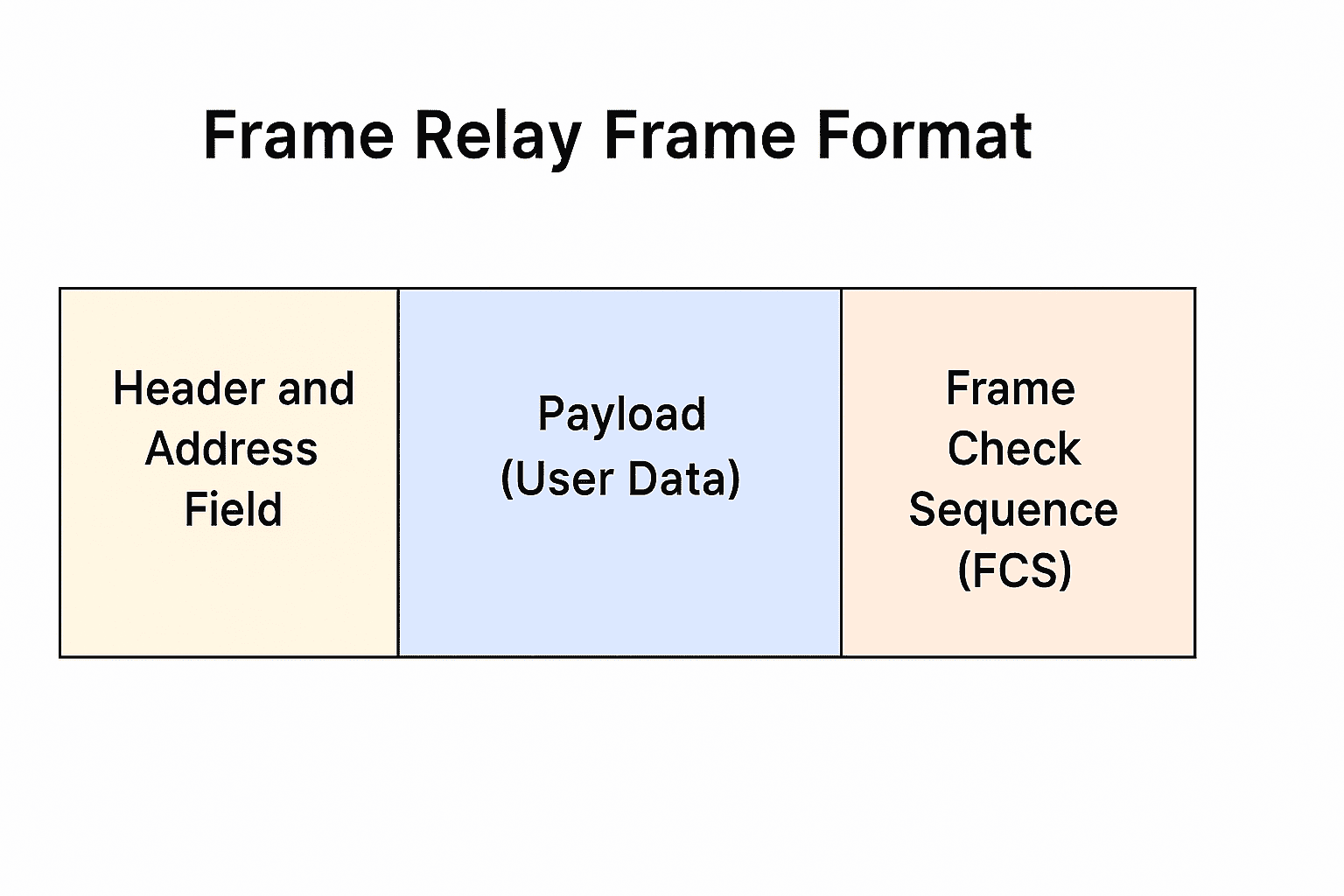

Frame Relay Frame Format

A Frame Relay frame is the basic unit of data used to transmit information across the network. Each frame is made up of three main parts that help ensure the data is delivered correctly and efficiently.

1. Header and Address Field

This part of the frame contains important control information. It includes the Data Link Connection Identifier (DLCI), which tells the network where the frame is going. It may also include bits for congestion control, such as FECN, BECN, and DE, which help manage traffic and prioritize data.

2. Payload (User Data)

This is the actual data being sent by the user, such as files, messages, or other information. Frame Relay does not modify the payload, it simply carries it from one point to another.

3. Frame Check Sequence (FCS)

The FCS is used for error detection. It checks whether the data in the frame has been changed or corrupted during transmission. If an error is found, the frame is usually discarded, and it’s up to higher-layer protocols to handle retransmission.

Advantages of Frame Relay

The following are the main advantages of Frame Relay:

● Uses statistical multiplexing to share bandwidth.

● Minimal protocol overhead speeds up communication.

● Lower cost than dedicated leased lines.

● Easily add new virtual circuits.

Limitations of Frame Relay

Here are 5 key limitations of Frame Relay:

● Frame Relay does not perform error correction. It relies on higher-layer protocols to detect and fix errors, which can be inefficient for noisy networks.

● Frame Relay has been largely replaced by faster, more reliable technologies like MPLS and Ethernet WAN due to its limited scalability and aging infrastructure.

● It offers minimal QoS features, making it unsuitable for real-time applications like VoIP and video conferencing that require low latency and guaranteed bandwidth.

● Bandwidth allocation is not dynamic or granular. Under heavy traffic, performance can degrade, and congestion control is basic compared to modern protocols.

● Setting up Permanent Virtual Circuits (PVCs) can be rigid and costly. They lack the flexibility of on-demand routing or dynamic path selection available in newer technologies.

Frame Relay vs. X.25 vs. MPLS

Here is a table mentioning its differences in comparison to X.25 and MPLS:

Frame Relay Configuration Example (Cisco Router)

Conclusion

Frame Relay played a pivotal role in shaping wide-area networking by providing a scalable, efficient, and economical way to transmit data across long distances. While its use has diminished in favor of modern technologies, understanding Frame Relay gives valuable insight into the development of data communication protocols and network design principles.
