What is First Hop Redundancy Protocol?

FHRP, or First Hop Redundancy technology, is a crucial network technology that improves gateway availability. It reduces any single point of failure in a network by allowing several routers to share a single virtual IP address.

In this article, we have explained about the First Hop Redundancy Protocol and Its Types. You will learn how FHRP works in real-world networks, with the help of diagrams. We have also provided tips on using the FHRP protocol.

Furthermore, if you are interested in building a career in networking, you can check out our IT infrastructure courses.

What is First Hop Redundancy Protocol?

The First Hop Redundancy Protocol (FHRP) is a network protocol designed to ensure the availability of the default gateway by enabling two or more routers to act as backups for a single gateway address within a subnet. If the active router fails, a standby router can take over its role within seconds, minimizing downtime.

The term "first-hop" refers to the default gateway router, which is the initial point where end-user devices send their traffic in a network. This router is critical because it serves as the bridge between the internal network and external destinations. If it fails, the entire network can lose connectivity to the internet.

There are several FHRP protocols like HSRP (Hot Standby Router Protocol), VRRP (Virtual Router Redundancy Protocol), and GLBP (Gateway Load Balancing Protocol), which create a virtual IP address shared among multiple routers. One router stays active, while others remain on standby and become active when the primary router fails.

CCNA Training OnlinePrepare for networking jobs with CCNA certification training.Explore course

Features of FHRP Protocols

● All client devices point to a shared virtual IP, not a physical router address.

● One router is active; others are ready to take over if it fails.

● Provides seamless switchover to a backup router without manual intervention.

● Reduces the risk of network outages due to a failed default gateway.

● Routers exchange hello packets to monitor status and detect failures.

Why are First Hop Redundancy Protocols so Important?

You've probably heard the saying, “Two is one, one is none.” This fits perfectly in computer networks. If you rely on a single router and it fails, the entire network goes down. However, with a backup router, traffic can continue uninterrupted.

The FHRP protocols maintain these backups to prevent a single point of failure in large networks. It allows multiple routers to share a virtual gateway IP. Devices send their traffic to this virtual IP, not to a specific router, so even if one router fails, others can do the data routing.

Without FHRP, even if there's a backup router, devices won’t know how to use it because they always send traffic to the same default gateway address. Since FHRP maintains a constant virtual gateway address, it can simply activate the standby router when the primary router fails.

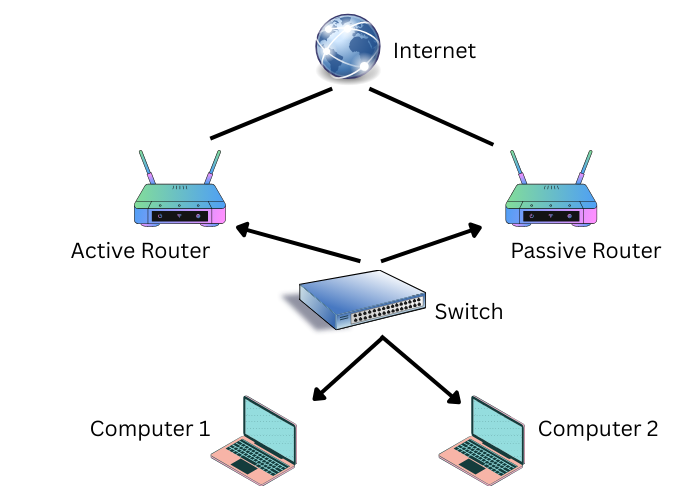

How do First Hop Redundancy Protocols Work?

FHRP protocol works by assigning a virtual IP to several routers, and keeping one router active and the other on standby. A detailed step-by-step process of FHRP working is given below:

Step 1: Creating Virtual IP Setup

FHRP creates a virtual IP address that is shared between two or more routers. This virtual IP is used as the default gateway for all devices on the network. So devices don’t connect to a specific router, but they connect to this shared IP.

Step 2: Assigning Active and Standby Roles

Among the routers sharing the virtual IP, one is chosen as the active router, and it handles all the traffic. All other routers are standby routers, and they stay ready to take over if the active one fails.

Step 3: Constant Failure Detection

The routers send regular "Hello" messages to each other. These messages help them know if the active router is still working. If the standby router stops receiving these messages, it knows something is wrong.

Step 4: Sending Traffic

When a device like a PC wants to send data, it asks for the MAC address of the default gateway (the virtual IP). The active router replies with a virtual MAC address, and the PC sends its traffic there. The PC doesn’t know which physical router is handling the traffic.

Step 5: Failover Process

If the active router fails, the standby router notices the missing Hello messages. It quickly takes over and becomes the new active router. It sends out a special update (called a gratuitous ARP) to let all devices and switches know that it’s now handling traffic. Everything continues to work without interruption.

Types of FHRP

There are several types of FHRP protocols, each with its own features and vendor support. Some of the most used FHRP protocols are:

1. Hot Standby Router Protocol (HSRP)

HSRP is Cisco’s proprietary FHRP designed to provide high availability by allowing two or more routers to share a virtual IP and MAC address. One router acts as the active gateway, while the other remains in standby, ready to take over if the active router fails. It uses a default hello timer of 3 seconds and a hold timer of 10 seconds. HSRP supports features like preemption (to allow a higher-priority router to become active) and interface tracking (to influence priority based on interface status).

2. Virtual Router Redundancy Protocol (VRRP)

VRRP is a widely supported, vendor-neutral protocol used in mixed networking environments. It functions similarly to HSRP by assigning a virtual IP to a group of routers, with one acting as the master. Routers are prioritized to determine which will be the master or backup. The master router sends advertisements at 1-second intervals by default. VRRP supports both IPv4 and IPv6, making it flexible for modern networks.

3. Gateway Load Balancing Protocol (GLBP)

GLBP extends FHRP functionality by not only providing redundancy but also distributing traffic load among multiple routers. Unlike HSRP and VRRP, GLBP allows multiple routers to actively forward packets, improving bandwidth utilization. It assigns different virtual MAC addresses to each client, balancing traffic intelligently. This makes GLBP ideal for scenarios where both availability and performance are critical.

Comparing HSRP, VRRP, and GLBP

The table below shows a side-by-side comparison of different FHRP Protocols:

Benefits of First Hop Redundancy Protocol

The following are the various benefits of using FHRP Protocols:

● Failover happens automatically without user intervention.

● End-users experience no connectivity disruption.

● Works in both IPv4 and IPv6 environments.

● Avoids a single point of failure at the default gateway.

● Balances traffic across multiple gateways.

Best Practices for First Hop Redundancy Protocol

Here are some points to consider when configuring and maintaining FHRP:

1. Assign unique group numbers per VLAN or subnet

2. Use preemption to allow high-priority routers to reclaim active status

3. Set router priorities intentionally to control role assignment

4. Enable interface tracking to detect link or device failures

5. Configure consistent virtual IPs across all devices in a group

6. Regularly monitor using commands like show standby, show vrrp, or show glbp

7. Adjust Hello and Hold timers for faster failover if needed

8. Implement authentication to prevent unauthorized FHRP participation

9. Periodically test failover to ensure redundancy works as expected

Where is First Hop Redundancy Protocol Used?

Some of the use cases where First Hop Redundancy Protocols are used widely include:

● Used in core or distribution layers to maintain access to services during router or link failure without disrupting traffic flow.

● It helps provide continuous connectivity in large campus LAN environments where downtime could affect hundreds of users.

● Provides a backup gateway in branch locations connected to headquarters, ensuring consistent WAN access.

● In scenarios where both high availability and bandwidth utilization are required, GLBP allows traffic load balancing across multiple gateways.

● Used in industrial or government networks where failover must be seamless and automated to avoid service disruption.

Conclusion

First Hop Redundancy Protocols are fundamental to building fault-tolerant network infrastructures. Whether you're using Cisco’s HSRP and GLBP or the open-standard VRRP, these protocols provide the resilience necessary to ensure uninterrupted gateway access.

By using virtual IPs, automated role elections, and intelligent failover mechanisms, FHRPs prevent downtime caused by router failures. Their integration into modern networks is not just beneficial, it's essential for maintaining high availability and business continuity in today’s connected environments.
