Half Duplex vs Full Duplex Transmission in Networking

Half Duplex and Full Duplex are two transmission modes in network communications that define how data flows between devices in a network. Understanding the difference between half and full duplex is useful in designing efficient networks and choosing the right equipment for specific use cases.

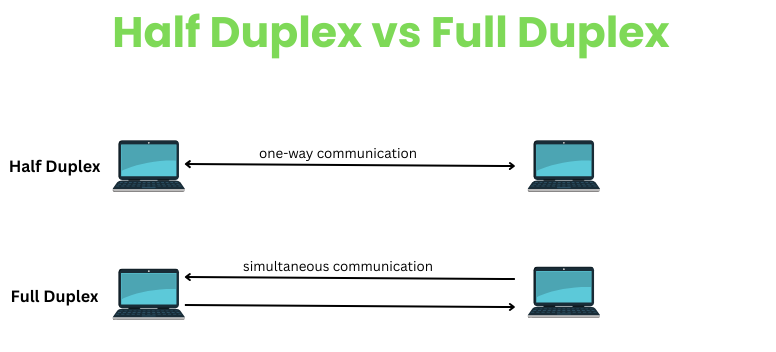

In this article, we have provided a side-by-side comparison of half-duplex vs full-duplex communication. To help you understand the distinctions better, we have provided the half and full duplex differences with examples and diagrams.

Furthermore, if you are interested in building a career in IT engineering or networking, you can check out our IT infrastructure courses.

Understanding Data Transmission Modes in Networking

In networking, data transmission modes describe how data moves between two devices. These modes determine whether communication is one-way, two-way, or simultaneous, and they play a crucial role in the performance and design of networks.

Think of it like a conversation, sometimes one person talks at a time, sometimes both talk together, and sometimes only one talks while the other just listens.

There are three types of transmission modes:

1. Simplex

2. Half Duplex

3. Full Duplex

For this article, we will only look at the half and full duplex modes.

What is Half-Duplex?

Half-duplex is a communication method in which the data flows in only one direction at a time.

So in a half-duplex system, only one device can transmit data while the other is receiving. Only one device can transmit data at a time, and communication happens alternatively.

Features of Half-Duplex Transmission

Features of half-duplex transmission are:

1. Data can travel in both directions between devices, but only one device can transmit at a time.

2. Both devices use the same communication channel alternately.

3. There is a mechanism to manage which device is allowed to transmit at a given time, often governed by routing protocols.

Advantages and Disadvantages of Half-Duplex

What is Full-Duplex?

Full Duplex is a communication mode in which two devices can transmit and receive data simultaneously.

So in a full-duplex system, both devices can send and receive data at the same time without any interruptions. It enhances the efficiency of data transfer, allowing for faster and more seamless communication between devices.

Features of Full-Duplex Transmission

The features of full-duplex transmission are:

1. Both devices can send and receive data at the same time, increasing communication efficiency.

2. Communication typically uses separate physical or logical channels for transmitting and receiving data.

3. The effective communication speed is higher compared to half-duplex systems.

Advantages and Disadvantages of Full-Duplex

Difference Between Full-Duplex and Half-Duplex

The table below shows the comparison of Full-Duplex vs Half-Duplex :

Half-Duplex vs Full-Duplex Examples

Let's look at half-duplex and full-duplex examples:

Half-Duplex Examples

● Walkie-Talkies: Communication can occur in both directions, but only one person can speak at a time.

● CB Radios: Commonly used in vehicles, these radios allow for two-way communication, but only one party can transmit at a time.

● Traditional Ethernet (using hubs): Data can be sent and received, but not simultaneously, leading to potential collisions.

Full-Duplex Examples

● Telephone Networks: Both parties can speak and listen simultaneously, allowing for natural conversation.

● Modern Ethernet (using switches): Data can be sent and received at the same time, improving network efficiency.

● Fiber Optic Communication: Supports simultaneous two-way data transmission, making it ideal for high-speed internet and communication services.

Conclusion

In summary, both full duplex and half duplex have their place in communication systems, each with its strengths and weaknesses. The choice between full-duplex and half-duplex communication often depends on the specific needs of the network or communication system.

Half-Duplex is more suited to simpler, cost-effective systems where simultaneous communication isn’t necessary. Full-Duplex, on the other hand, is vital for applications that require constant, real-time, bidirectional communication.

Understanding half duplex and full duplex with examples helps ensure the appropriate selection for various networking scenarios, ensuring that the system's performance and functionality meet the desired needs.
