Task
• On Switch 02 Configure int e1/0, e2/0 , e3/0 in vlan 2, int e1/1 , e2/1 in Vlan 3 and int e1/2, e2/2 , e3/2 in Vlan4
• Configure R1 ip 192.168.1.1 /24 and R2 ip 101.1.1.1 /24
• Configure ASA01
• int e0 ip 192.168.1.10 and standby ip 192.168.1.11 with nameif ‘inside’ and security level ‘100’
• int e2 ip add 101.1.1.10 and standby ip 101.1.1.11 with nameif ‘outside’ and security level ‘0’
• Do not configure anything on ASA02 just no shutdown int e0 , int e1, int e2
• Run the failover commands and make ASA01 as Active and ASA02 as Standby
• Failover LAN interface name FOVER and bind interface e1
• Failover LAN ip is 7.7.100.100/24 and standby 7.7.100.101
• Create an Access-list for ICMP allowing any traffic fom Outside interface
Explanation
Failover is a feature that is visible on Cisco ASA to provide device redundancy . So that in case if one ASA fails another ASA can take over it’s role
Type of Redundancy
I. Device Redundancy
Active standby Failover
Active Active Failover
II. Interface Redundancy
Etherchannel
Failover types
1. Active Standby
● In this one firewall is active and another firewall is standby
● Active device is responsible for forwarding data traffic
● Can be done in both Single and Multiple mode
2. Active-Active failover
● In this, both ASA will be in Active mode
● Can run only in Multiple Mode
● Device redundancy and load balancing are achieved
Configuration
On SW2
On R1

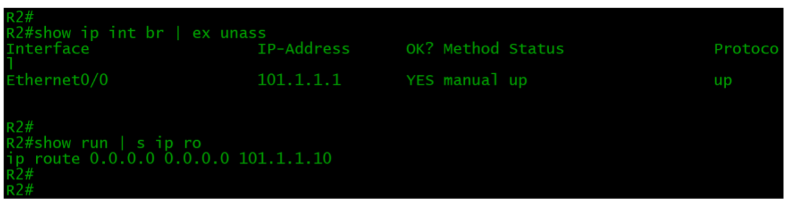

On R2

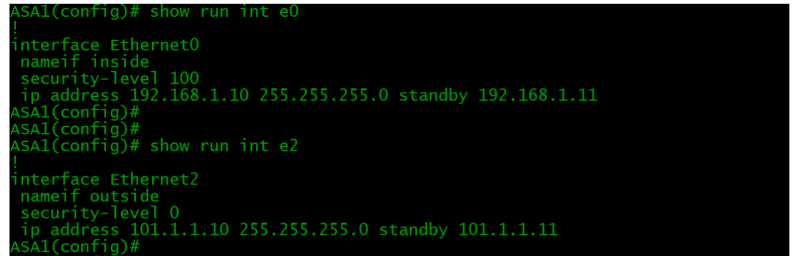

On ASA1(do not configure on int e1 just no sh )
On ASA02 (do not configure on int e0 , int e1 , int e2 just ‘no shut’ them)
Failover Command on ASA1
• Tell the unit with Failover lan unit primary
• Tell failover lan name and interface
• Tell failover interface ip 7.7.100.100 /24 and standby ip 7.7.100.101/24
Failover command on ASA2
• No need to tell failover unit as by default ll the failover is in standby mode
• Failover lan name and interface
• Tell failover interface ip 7.7.100.100 /24 and standby ip 7.7.100.101/24
Check the int ip on both ASA1 and ASA2
ping ASA1 to ASA2 failover link ip
Run “failover” command on both ASA1 and ASA2
Now the configuration replication occur automatically
ASA1
ASA2
Command “show failover”(This should be in Active mode)
ACL on ASA1 (run command “prompt hostname state”
Result
Ping from R1 to R2
Debug ip ICMP
On SW1 (shut int e1/0) then check ASA01
ASA1 (standby)
ASA2 (active)
